ePatch continuously records and stores heartbeats that are analyzed by certified cardiac technicians at BioTel Heart. Clinical reports are made available to your healthcare professional at the end of service.

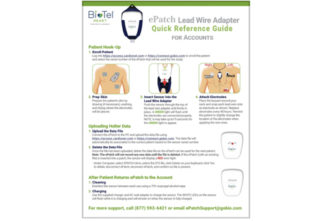

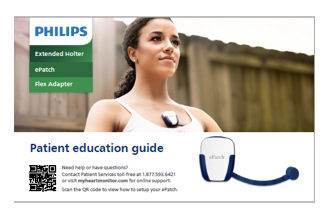

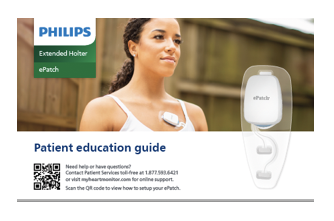

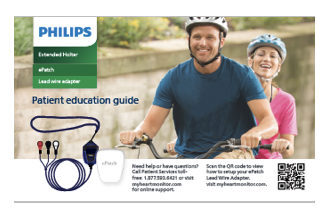

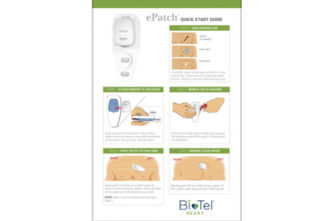

Take a look at our instructional materials to get set up quickly.
Simple to Start. Easy to Wear.

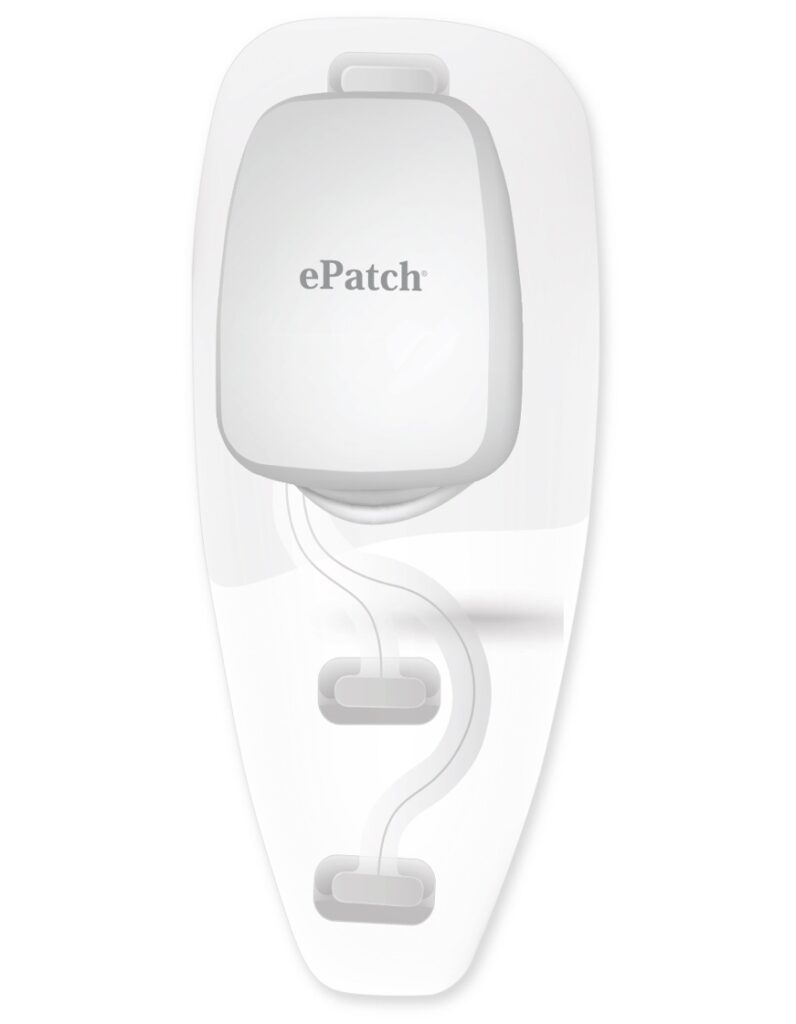

• Small, lightweight sensor — easy to apply patch (< 1oz.)
• Water-resistant — patients can wear in the shower
• No battery changes by patients

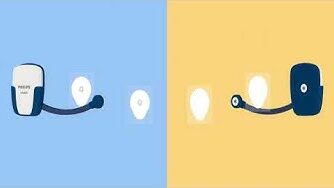

Flexible Options
• Download data at your practice/hospital for faster results or patients can mail back
• Up to 14 days of continuous extended monitoring using a single channel
Accurate Findings
• Clear, actionable, easy-to-interpret monitoring report
• Report is uploaded and available 24/7/365 through the dedicated
HIPAA-compliant website

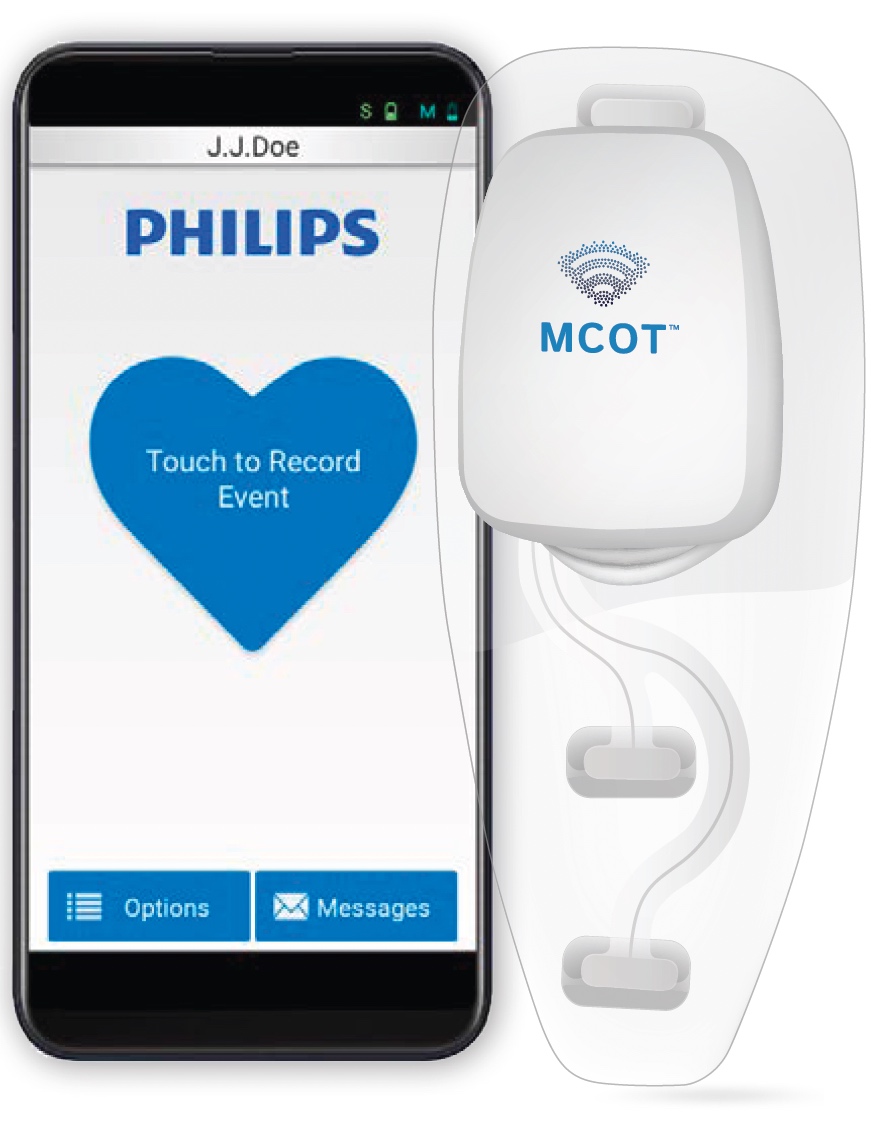

• From BioTel Heart, the leading cardiac monitoring company with a portfolio of cardiac monitoring devices, including mobile cardiac telemetry and wireless event
Device classification (EN 60601-1): Class: Internally powered, Type BF applied parts, not protected against defibrillator, no functional earth terminal
Data Acquisition: 1, 2, or 3 channels ECG, Event Trigger
Recording Time: Default of 5 days (the recording time is configurable by manufacturer)
Sampling Rate: 128, 256, 512, or 1024 Hz
Resolution: 16 bit
Frequency Response: 0.05 Hz High Pass
Input range ECG Channels: 180 mVpv (Peak-to-Valley) CMRR (common mode rejection ratio): >80 dB
Maximum Data File Size: 2 GB EFS- le (ePatch® File System)
Expected Service Life: Minimum 500 lifecycles or minimum two years (after which the battery capacity, or available service time from a full charge, of the sensor may be reduced)
The battery is not replaceable. Charging of the sensor should only be performed by use of the provided USB power adapter or a computer via the provided Micro USB cable. Use of other charging devices may damage the device and/or the accessories.
